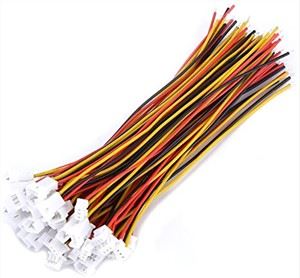

JST Connector Wire Harness

Connecting wires to JST connectors is a multi-step process that requires precision and attention to detail to ensure a secure and reliable electrical connection.

Preparation: The wire must be cut to the correct length, and the insulation must be stripped from the end to expose the bare conductor.

Crimping: Choose the correct crimp terminal for the wire gauge. Insert the stripped wire into the terminal and use a crimping tool to tightly secure the wire within the terminal.

Inspection: After crimping, it's important to inspect the connection to ensure it is secure and there are no loose strands of wire.

Housing: The crimped terminal is then inserted into the JST connector housing. It should be pushed in until a click is heard, indicating that the terminal is locked in place.

Testing: Perform a pull test to confirm the terminal is securely inserted. Electrical testing for continuity can also be conducted to ensure proper connectivity.

This process, when done correctly, results in a durable and reliable connection suitable for various applications where JST connectors are used.

The appropriate wire size for JST connectors varies depending on the specific connector series and its application. Generally, JST connectors can accommodate a range of wire sizes, which are specified by the American Wire Gauge (AWG) system. For example:

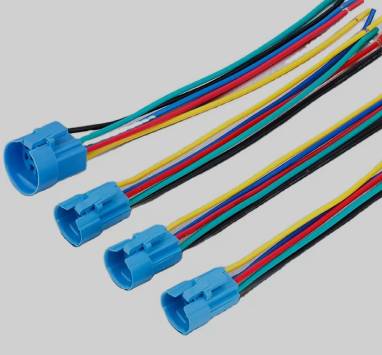

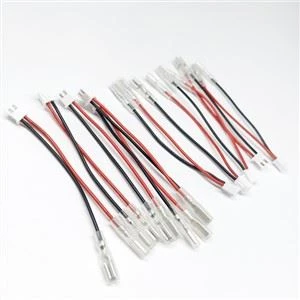

• The JST-XH series, commonly used in battery connections and radio-controlled applications, supports wire sizes from AWG 30 to AWG 22.

• The JST-VH series, which is often used for higher current applications, can handle wire sizes from AWG 22 to AWG 16.

• For smaller connectors like the JST-GH series, suitable for compact and low-current applications, the wire size range is typically AWG 30 to AWG 26.

The standard for a JST Connector Wire Harness encompasses a set of guidelines and specifications that ensure the safety, reliability, and performance of the connectors and wire harnesses. These standards typically include:

• Electrical Specifications: voltage, current, and contact resistance requirements to ensure the connector can handle the electrical load.

• Mechanical Specifications: Dimensions, locking mechanisms, and insertion forces to ensure a secure fit and ease of use.

• Environmental Specifications: Temperature ranges, moisture resistance, and other environmental factors the product can withstand.

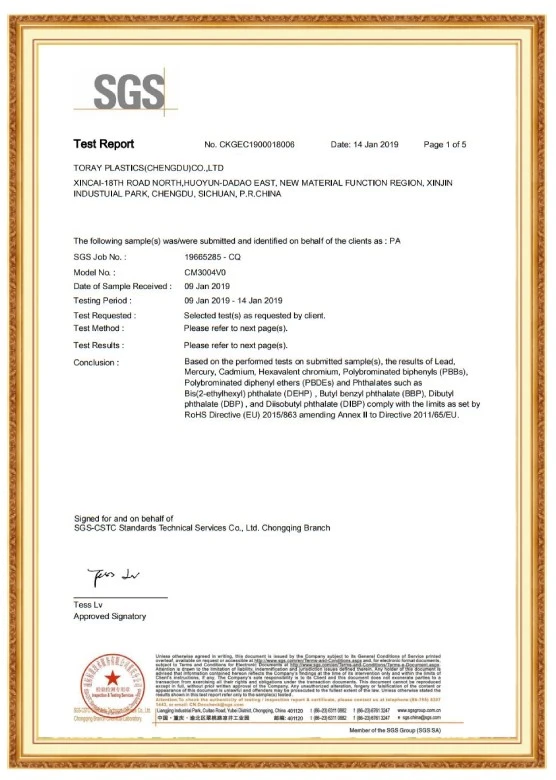

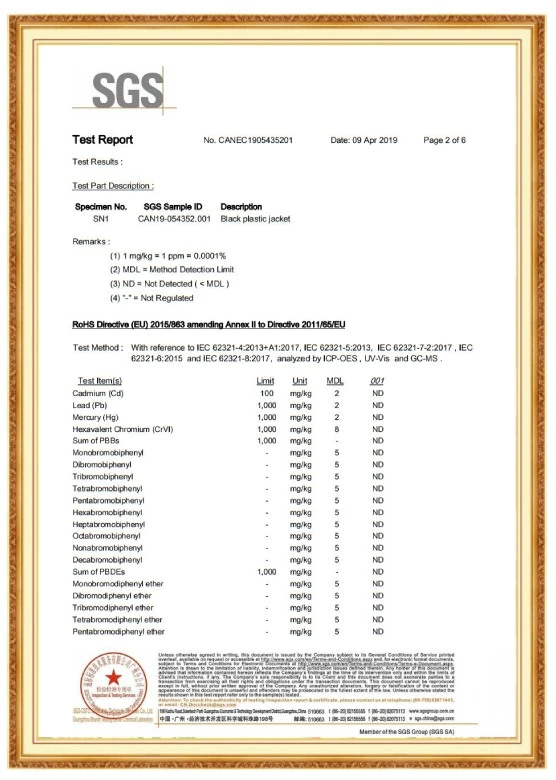

• Material Specifications: Types of materials used for contacts and insulation, ensuring they meet regulatory requirements for safety and performance.

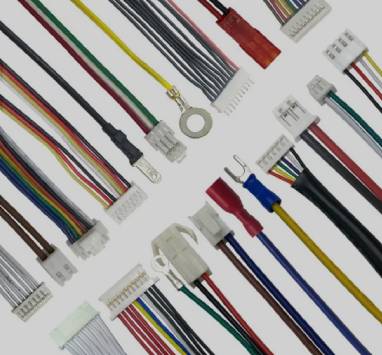

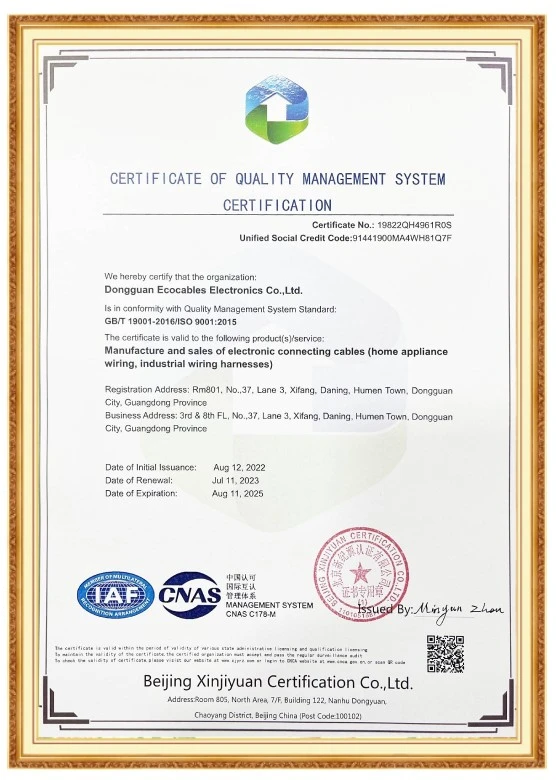

• Quality Standards: Compliance with industry-specific quality standards such as ISO 9001 for quality management systems.

• Safety Regulations: Adherence to international safety standards and regulations, such as the Electrical Appliance and Material Safety Law.

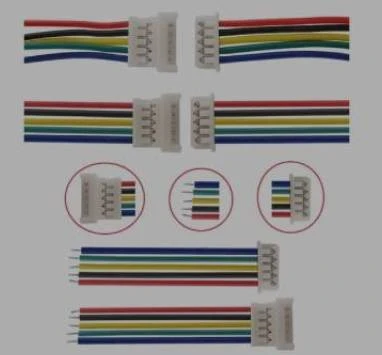

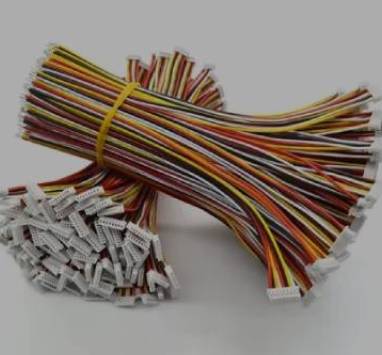

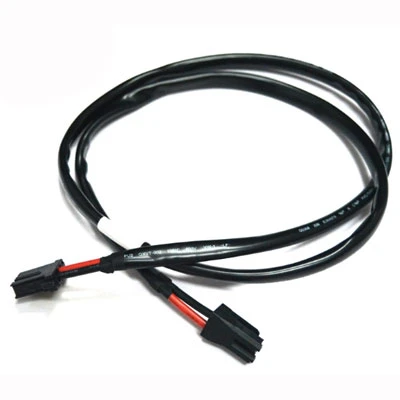

A JST Connector Wire Harness typically consists of several key components:

• Connectors: These are the main components of the harness that connect wires to devices or other wires. JST connectors come in various series, each designed for specific applications and pitch sizes.

• Terminals: These are metal components that make the actual electrical connection within the connectors. They can be crimped or soldered to the wire.

• Wires: Usually made of copper, wires are covered with an insulating layer to protect against short circuits and other electrical hazards.

• Insulation: This includes the outer jacket of the harness as well as the individual insulation on the wires.

• Strain Relief: This component provides support at the points where wires exit a connector, reducing stress on the wires.

• Grommets: These are used to protect wires when they pass through metal or other abrasive surfaces.

Each of these components plays a crucial role in the functionality and reliability of the JST Connector Wire Harness, ensuring a secure and stable connection in various applications. The specific design and configuration of the wire harness can vary depending on its intended use and the requirements of the equipment it connects to. JST's wide range of connectors, such as the PH, XH, VH, GH, and ZH series, cater to different pitch spacings and current-carrying capacities, making them versatile for various electronic projects.
